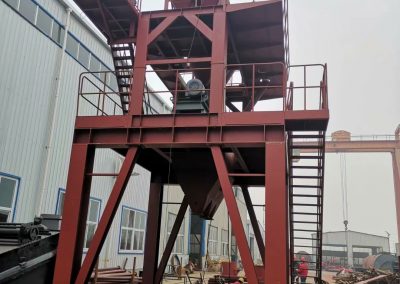

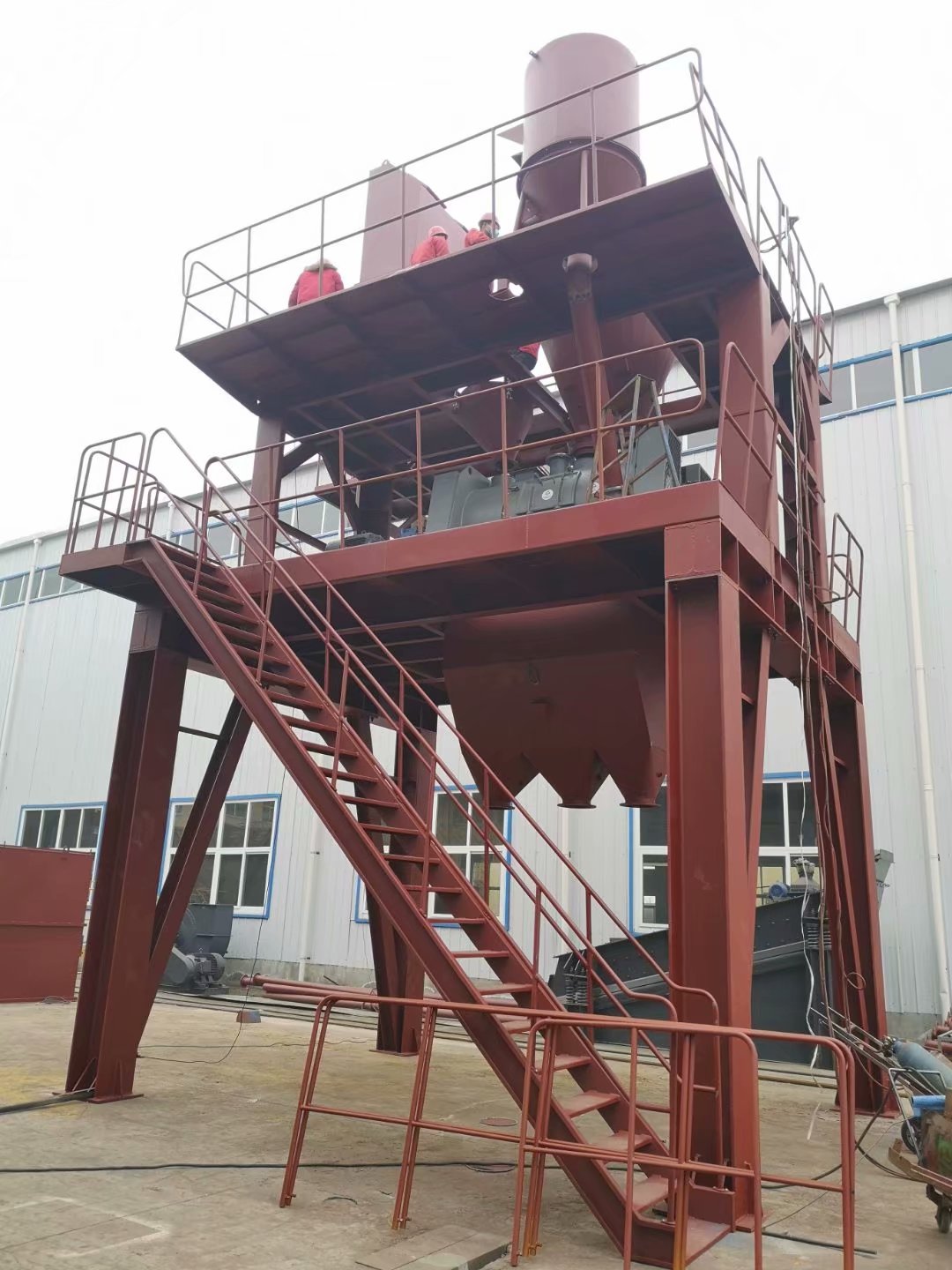

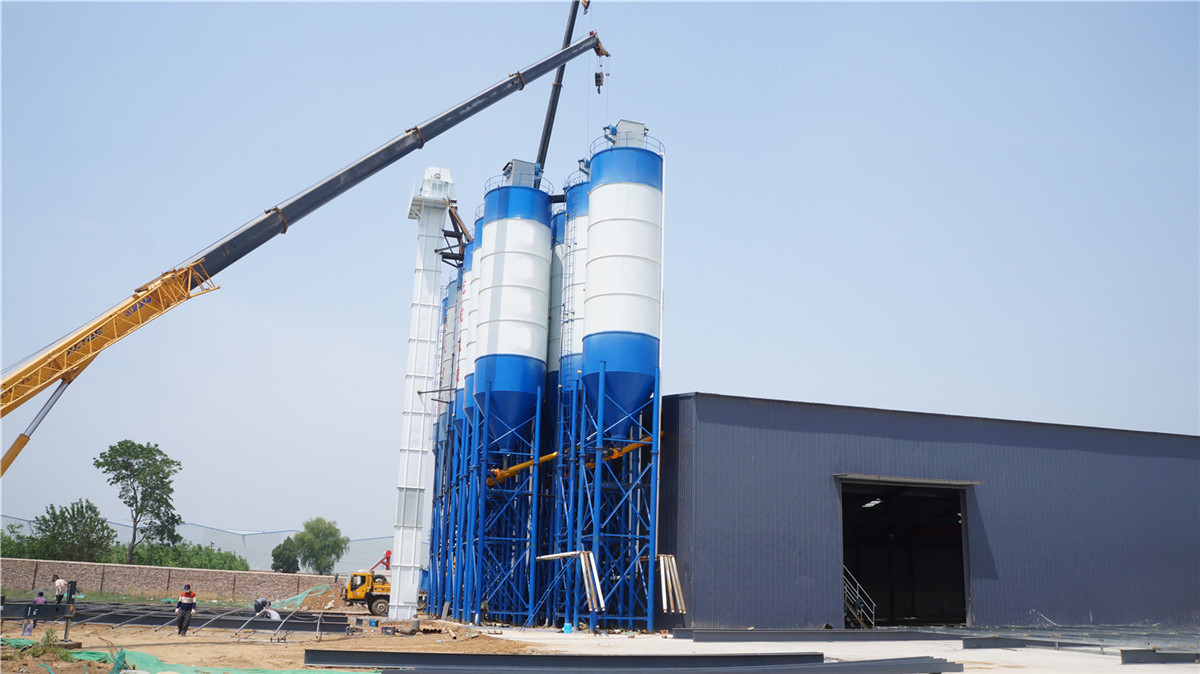

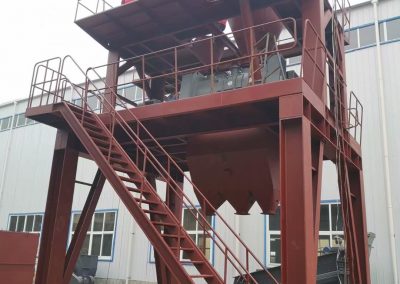

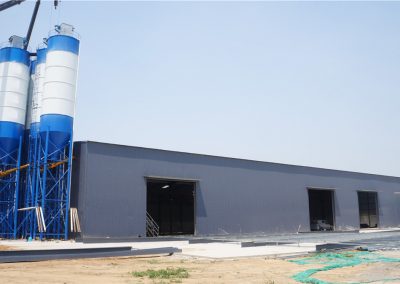

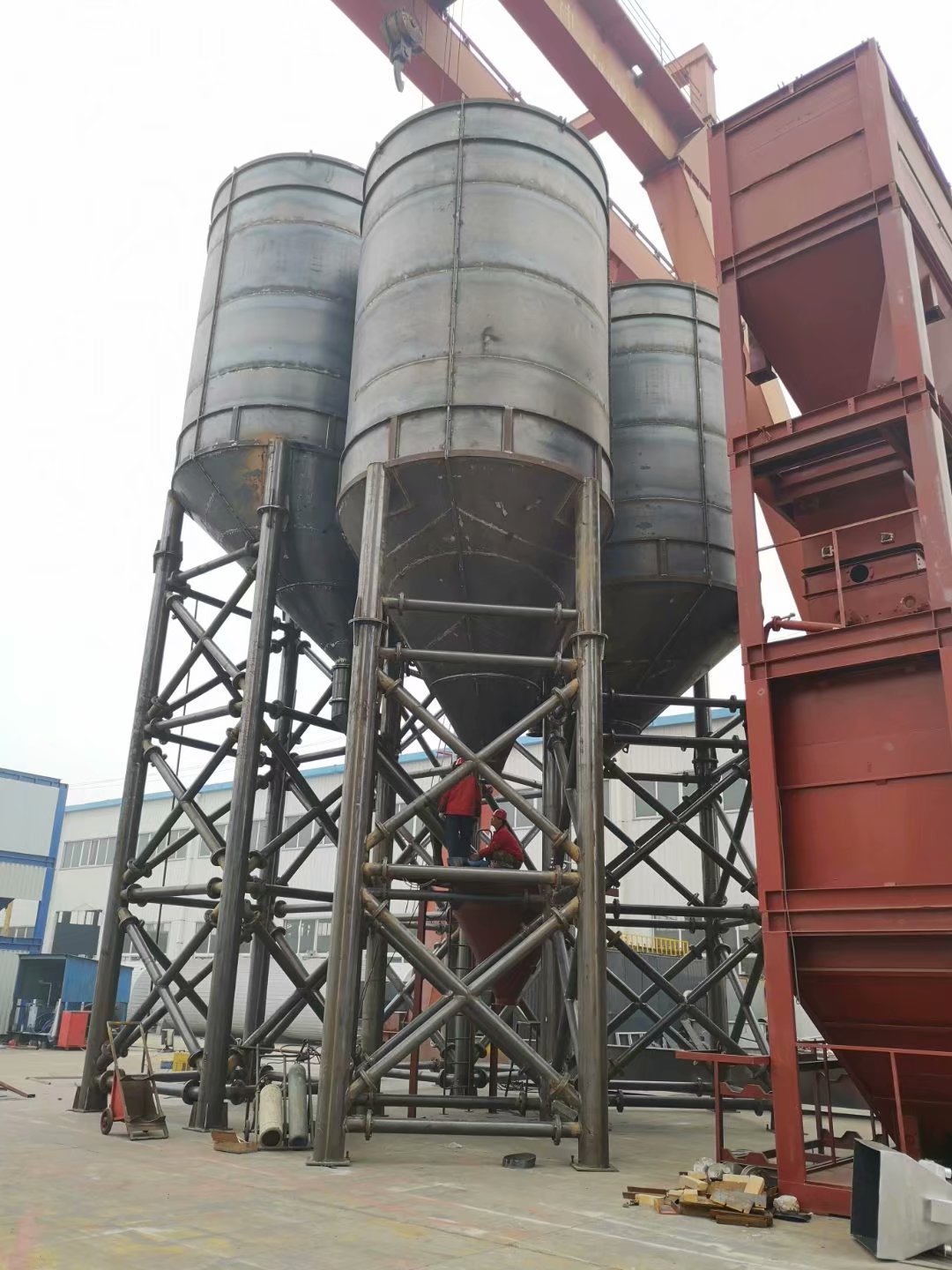

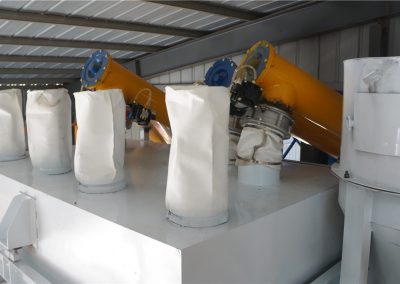

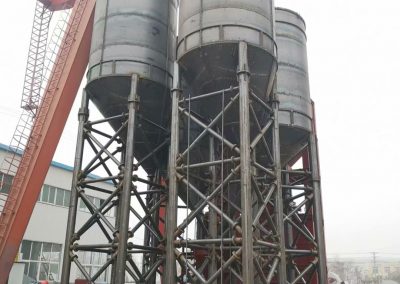

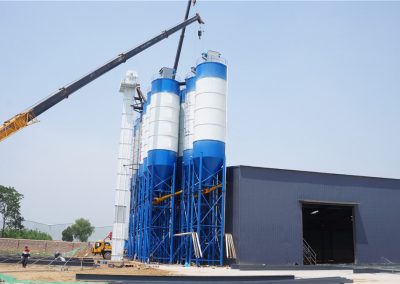

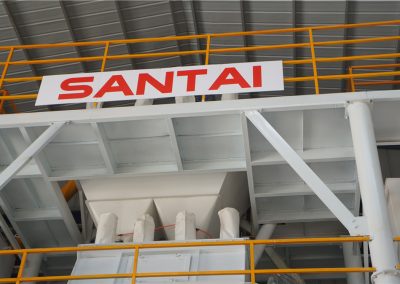

Dry Mortar Mix Plants
1-100 TPH customized dry mortar mix plants high efficiency, customization,reliability,producing mortar mixture to match high-level construction.
- Optional configuration as customers request
- Low cost and operation maintenance
- Choice for environmental design-containerized or standard
- Fully automation control or semi-automation optional
- Emergency shut-down protection
A better low-cost and high-performance dry mortar mix plants for engineering contractor and construction company. Match all the technical standard of house, apartment, plazza and other buildings construction.
Features
Dryers
Dryer of dry mortar mix plant adapt the European mount technology. make the moisture of sand below 0.5%, the design can match the coal, gas, oil.
Mixers
Mixers of our dry mortar plant are the non-gravity two shaft ones. Abrasion resistant alloy make sure the reliable and long life running.

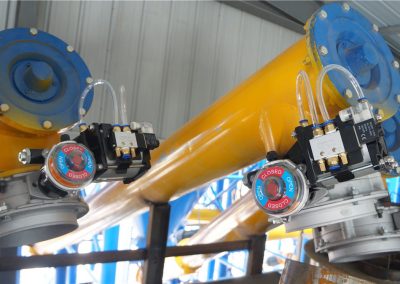

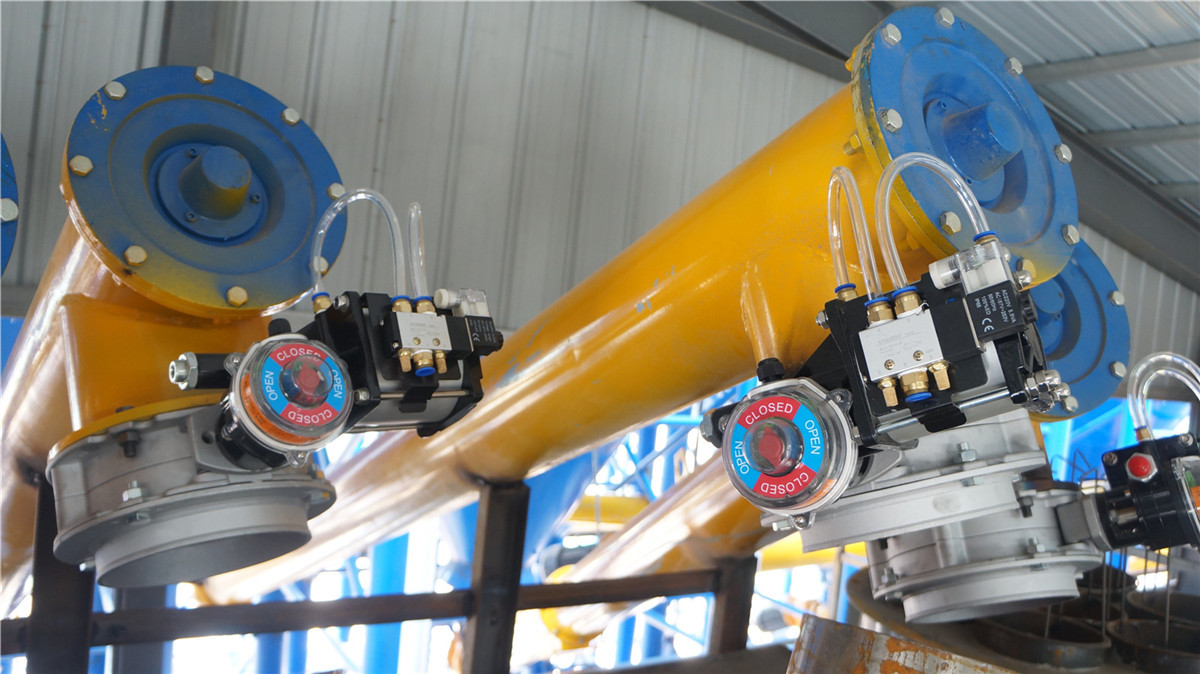

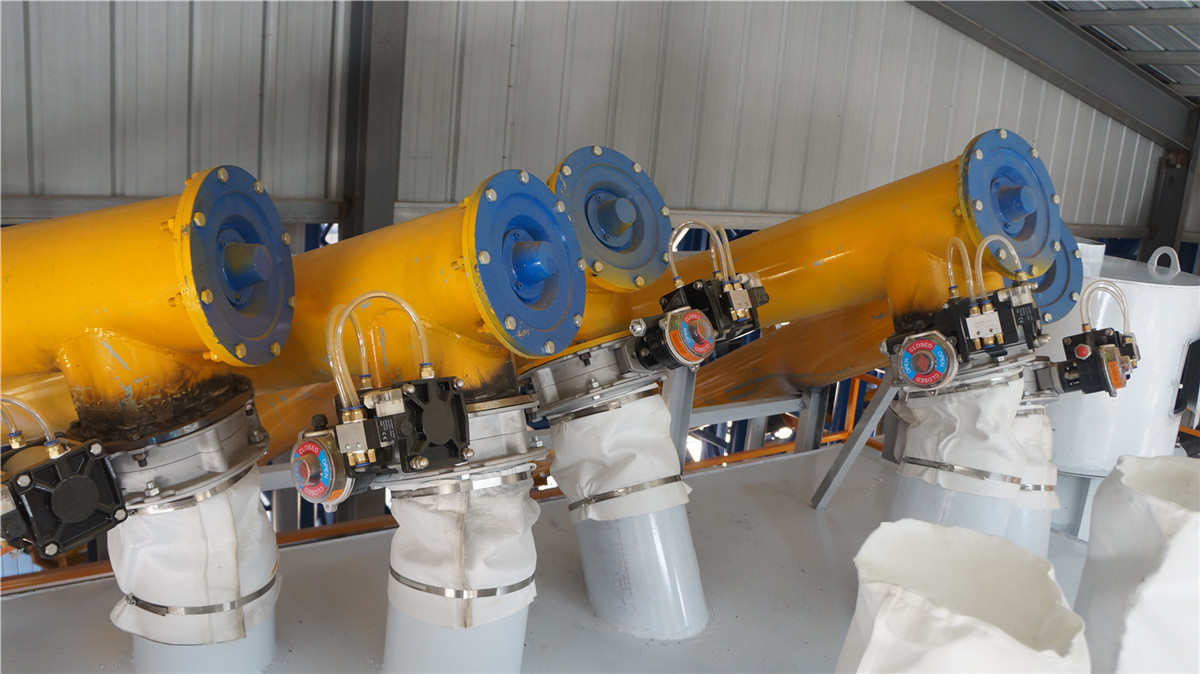

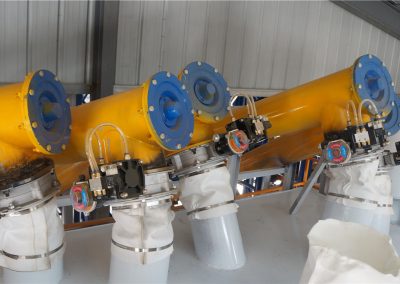

Screw Conveyors
Whatever the paiting technique and the manufacturing craft, our screw conveyors will give you the impression of reliability.

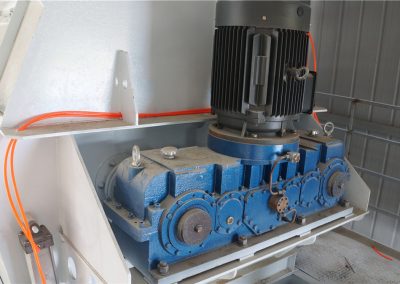

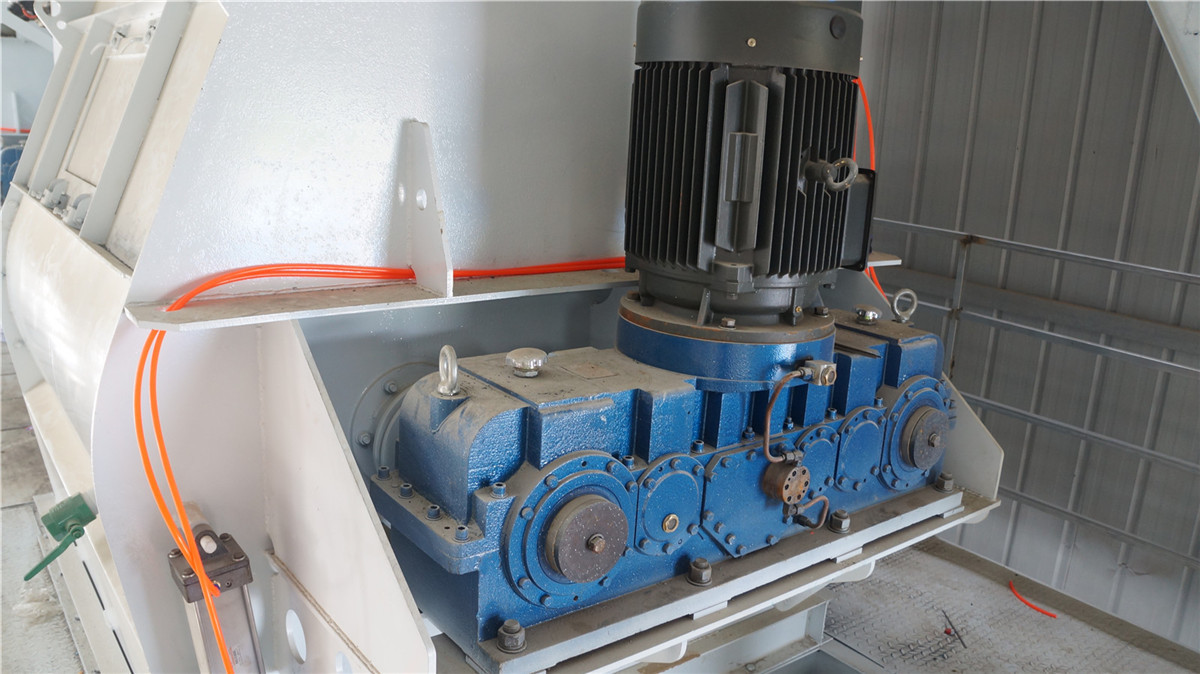

Motors
The motors in our dry mortar plants are famous brands ones in china, SIEMENS motors are optional.
Control System
The control system show every key points in the flow chart, excellent electric units are used in our distribution.

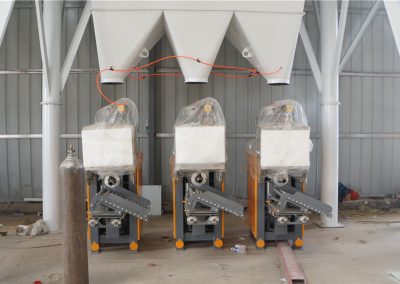

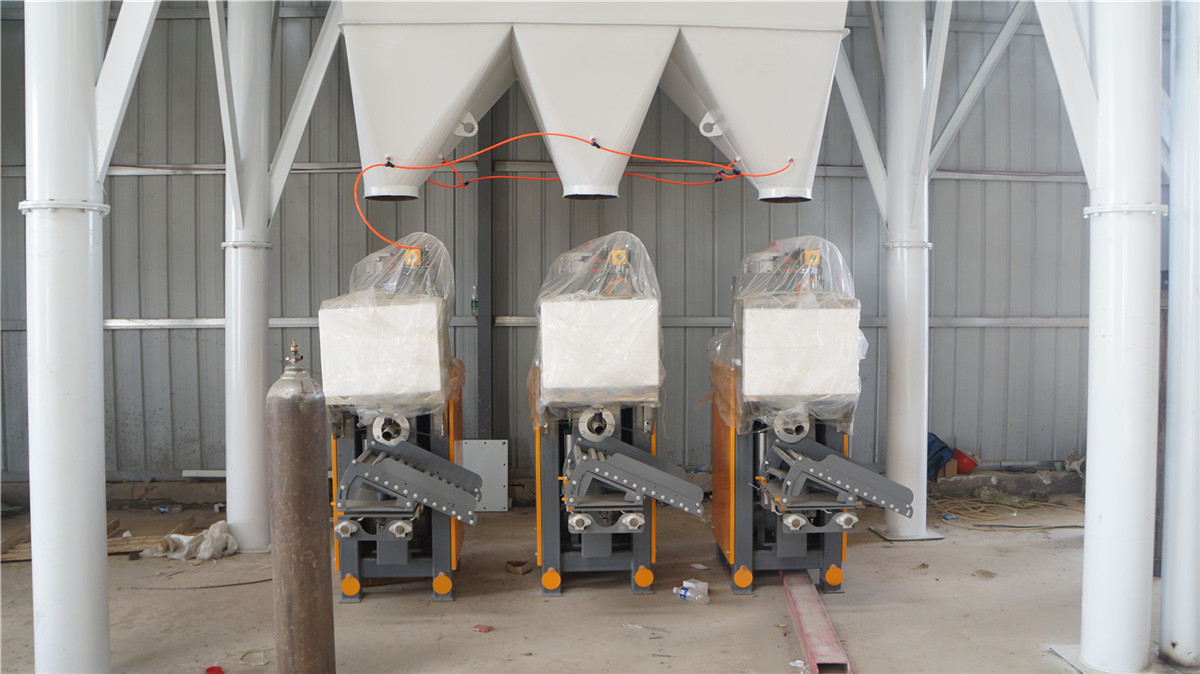

Automatic packing machine
The packing machine can meters as your request. 20 KGS bags, 50 kgs bags, etc.
Options
| Options |
| Siemens motors, SEW motors or other brand motors. |
| Mobile or transportable secondary dust filtration systems |

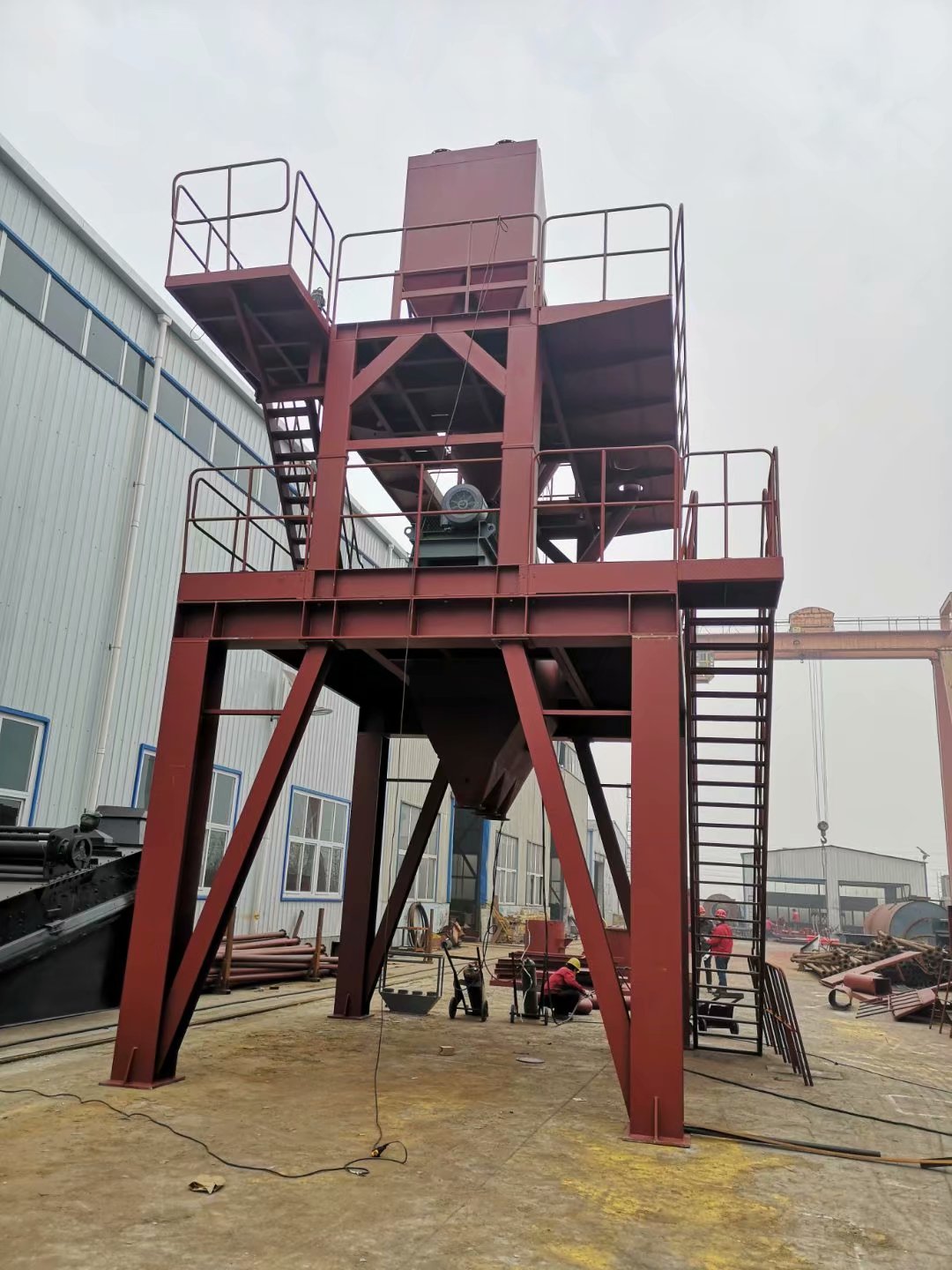

| Stair type or tower type structure |
| Heavy oil, gas or coal burners |
| Control room |
Specifications
| Units | DST5 | DST10 | |
|---|---|---|---|
| Plant Capacity | |||
| Capacity | TPH | 1-5 | 5-10 |
| Work conditions | |||
| Total power | kw | 7.5 | 11 |
| Material sizes | mm | 0-4.5 | 0-4.5 |
| Volume of mixer | m³ | 1 | 2 |
| Max height | mm | 4000 | 4000 |
| Workman | 2-3 | 2-3 | |
| Scales (Max.) | |||
| Aggregate | KG | 750±1% | 1500±1% |
| Cement | KG | 200±1% | 400±1% |
| Additives | KG | 10±0.5% | 20±0.5% |
| Units | DST20 | DST30 | |
|---|---|---|---|
| Plant Capacity | |||
| Capacity | TPH | 20-25 | 30-35 |
| Work conditions | |||
| Total power | kw | 75 | 90 |
| Material sizes | mm | 0-4.5 | 0-4.5 |
| Volume of mixer | m³ | 3 | 4 |
| Max height | mm | 7000 | 8000 |
| Workman | 3-4 | 3-4 | |
| Scales (Max.) | |||
| Aggregate | KG | 2200±1% | 3000±1% |
| Cement | KG | 600±1% | 800±1% |
| Additives | KG | 150±0.5% | 200±0.5% |
| Units | DST40 | DST60 | |
|---|---|---|---|
| Plant Capacity | |||
| Capacity | TPH | 40-50 | 60-70 |
| Work conditions | |||
| Total power | kw | 120 | 150 |
| Material sizes | mm | 0-4.5 | 0-4.5 |
| Volume of mixer | m³ | 5 | 6 |
| Max height | mm | 12000 | 15000 |
| Workman | 3-4 | 3-4 | |
| Scales (Max.) | |||
| Aggregate | KG | 3750±1% | 4500±1% |
| Cement | KG | 1000±1% | 1200±1% |
| Additives | KG | 250±0.5% | 300±0.5% |
